HFS Series
Horizontal Straight Sealer

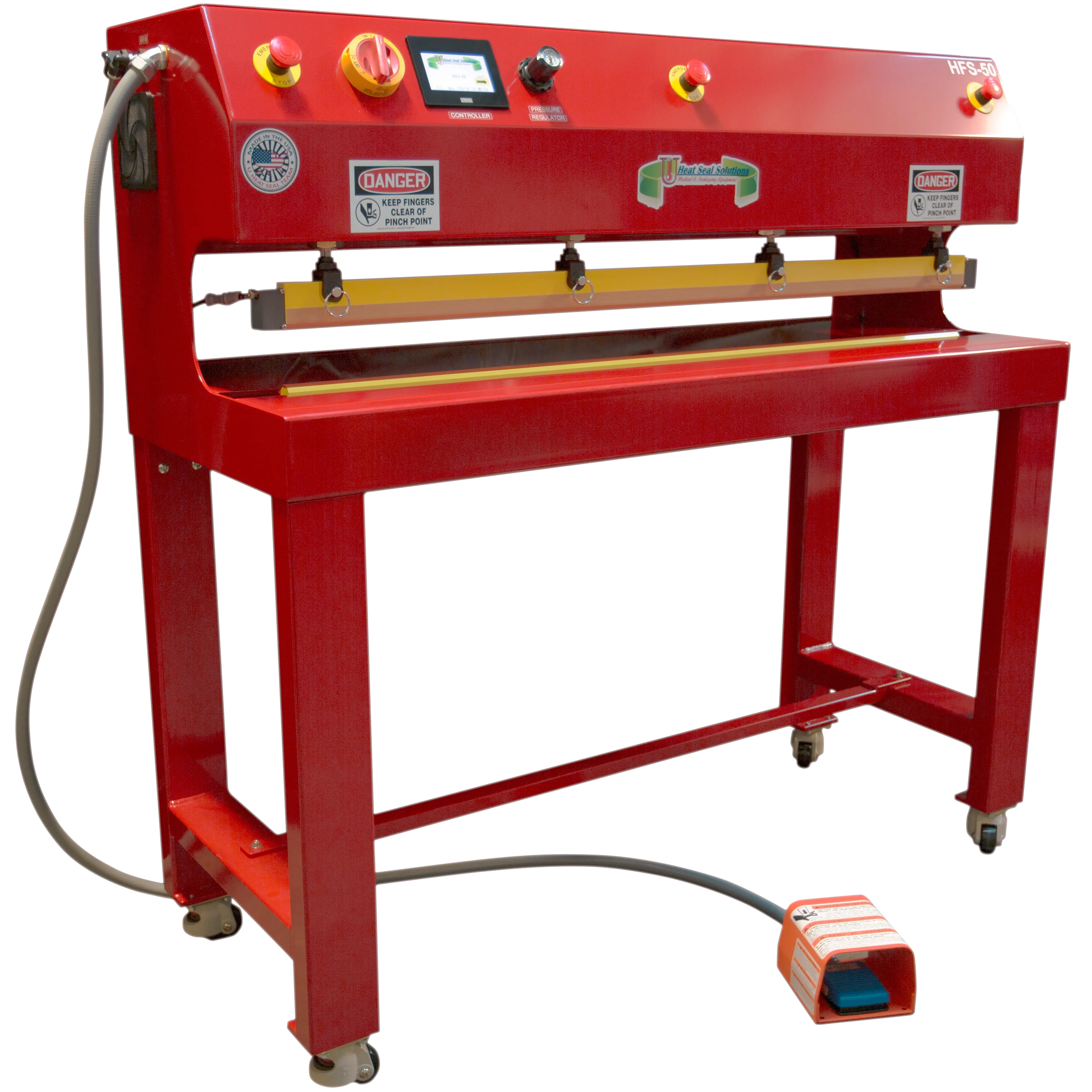

The HFS Series of pneumatically operated thermal impulse sealers are suitable for a wide variety of applications and is available in seal lengths from 26 in. (66.04 cm) up to 300 in. (762 cm). 1/4" (6.35 mm) wide heating elements are standard but other widths, seal and cut, or dual heating elements are available. The open-back C frame design allows for material feeding from multiple angles to accommodate various setups. It features an industrial grade powder-coated welded steel frame with swivel casters and leveling pads for easy movement. The 6 in. (15.24 cm) work area in front of the seal bars allow for product adjustment before the seal. Dual digital timers and an electronic pressure regulator come standard on the HFS Series to allow for easier and more accurate, precise seal settings. The optional 4.3" or 5.6" touchscreen controller features password protected seal settings, I/O screen for easy troubleshooting, and a cycle counter. It is equipped with a low-pressure safety descent and multiple emergency stops. The machine has a foot pedal activator but is also available with a two-hand control. It can be validated for a wide variety of medical and pharmaceutical applications. The HFS Series is designed and manufactured in the USA.
No video is available at this time.
Features |
---|
Air and Watertight Seal suitable for various applications and multiple materials |
Adjustable Heat & Cool Times with increments of one-tenth of a second |
Dual Digital Timers |
Heavy Duty Powder Coated Steel Frame |
Open-back C Frame design for material feeding from front or back |
6 in. (15.24 cm) Work Area in front of seal bars |
Multiple Cylinders for even seal pressure across seal length |
Removable legs equipped with swivel casters and leveling pads |
Optional Dual Heating Elements provide faster cycle times, longer consumable lifespan, equal seal appearance, and allows a wider variety of materials to be sealed |
Optional 4.3" or 5.6" Touchscreen Controller with UHSS Software 2.0 |
Standard Electronic Pressure Regulator |
Cleanroom Ready |
Safety Features |
---|
Low Pressure Safety Descent |
Optional Two Hand Control |
Multiple Emergency Stop Buttons |
Standard Specifications |
---|
Seal Length: Varies |
Seal Width & Heating Element: Single 1/4" in. (6.35 mm) Heating Element (Other widths, seal and cut, or dual heating elements available) |
Seal Type: Thermal Impulse Seal |
Physical Dimensions: Varies |
Weight: Varies |
Power Requirements: 208/230 V Single Phase; Amperage Varies |
Air Requirements: 80-100 psi; Dry Air |
Air Supply Port: 1/4" NPT Female Thread |
Exhaust Port: 1/4" NPT Muffler |
Included: HFS Series Sealer, Heating Element Kit(s), User Manual |
Warranty: Two (2) years Labor, One (1) year Parts |
4.3" Touchscreen Controller with UHSS Software 2.0 |
5.6" Touchscreen Controller with UHSS Software 2.0 |
1/2" or 3/8" Single Heating Element |
Dual Heating Elements (1/4", 3/8", 1/2" widths available) |
Seal & Cut Element (Custom Cut Location and Seal Width) |
Multiple Heating Elements |
Single or Dual Heating Element Switch (Dual Element Machines Only) |
Tower Indicator Light |

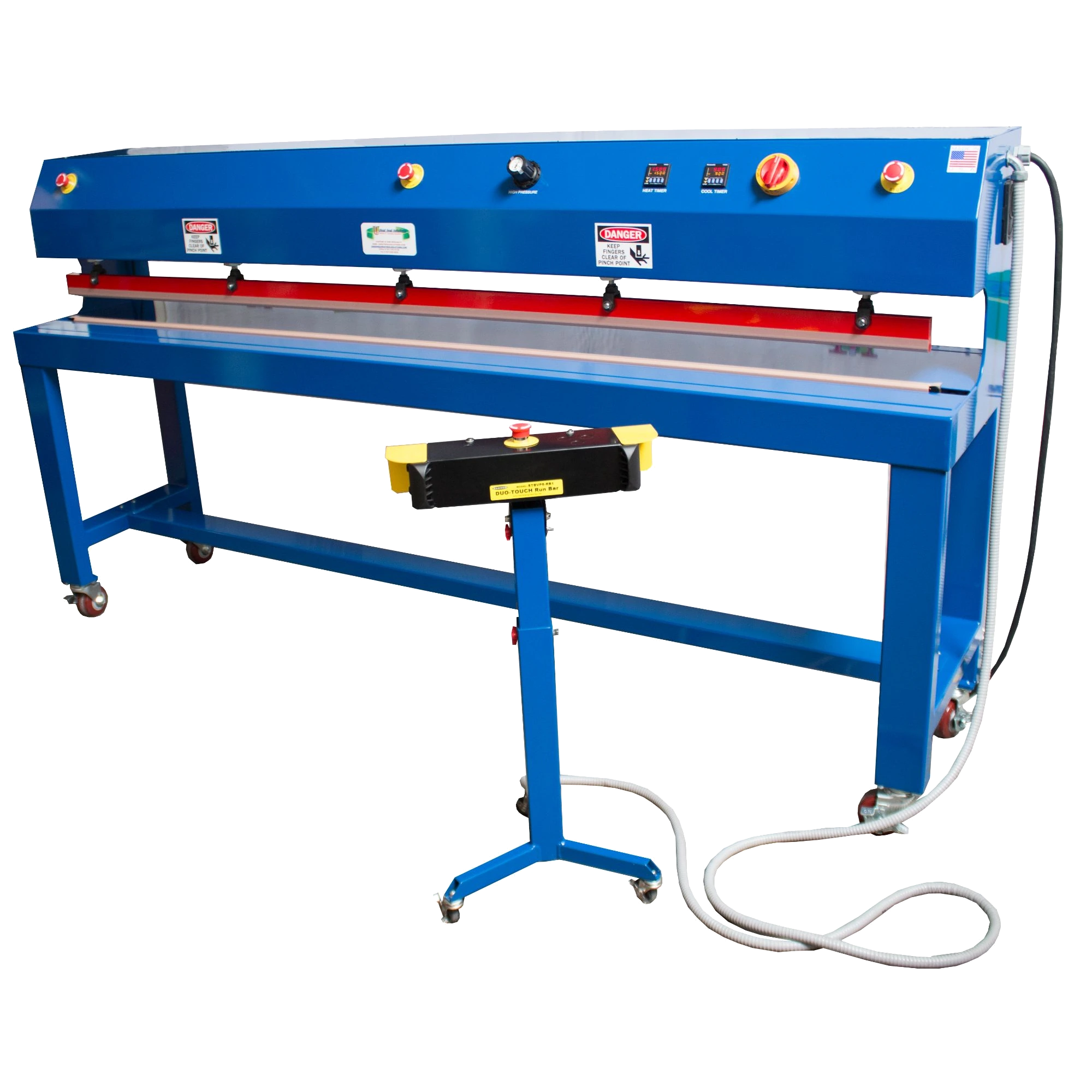

Two Hand Control with Additional Emergency Stop |
Single Water Cooled Seal Bar |
Dual Water Cooled Seal Bar |
Extended Shelf |
Stainless Steel Frame |
Medical and Pharmaceutical Validation Certificate |
